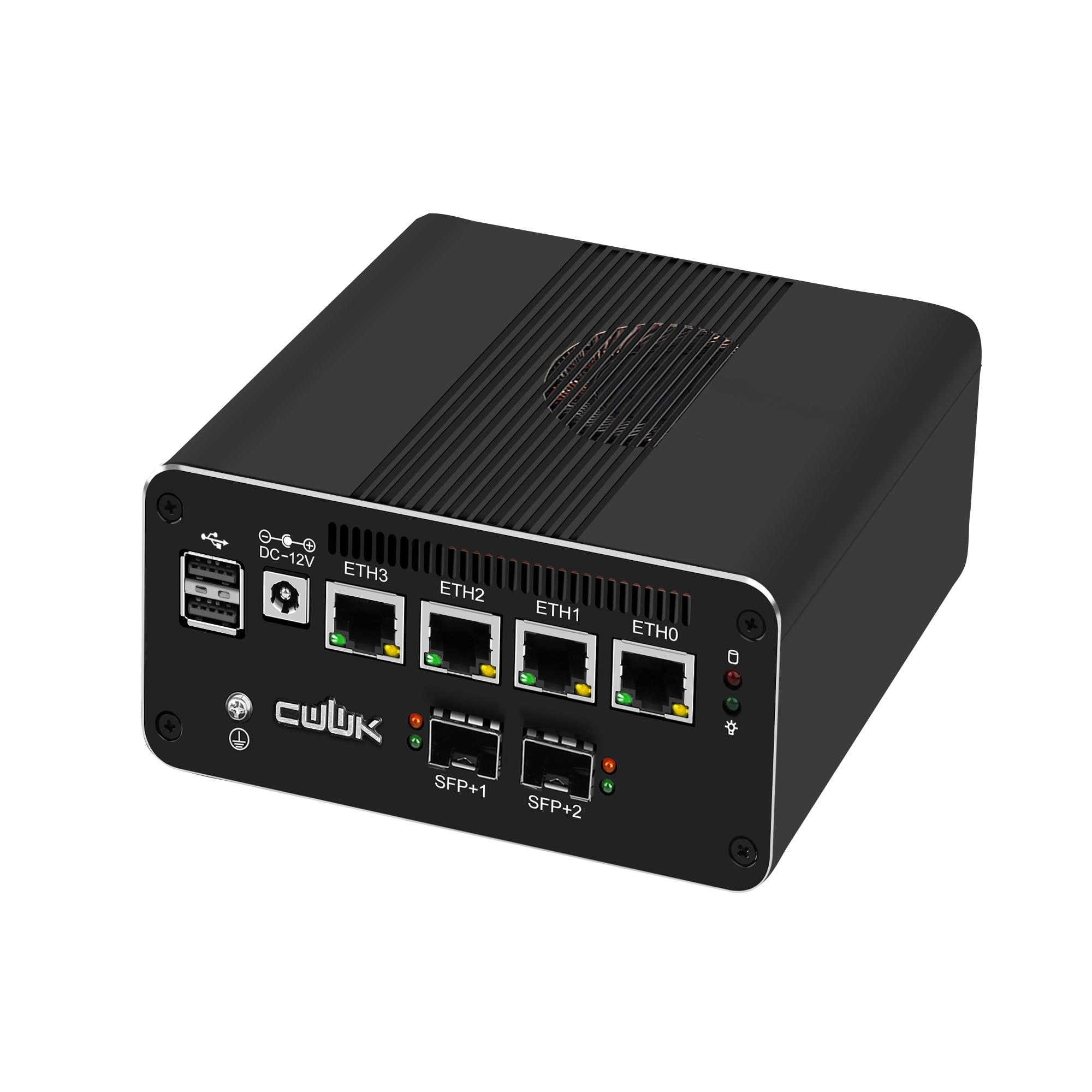

CWWK N150 Mini PC Firewall Appliance (Upgraded N100), 2 Port 10GbE SFP+ Mini Computer with 4 x 2.5GbE LAN, S3 OPNsense Micro PC, DDR5 8GB RAM 128GB NVMe SSD, USB-C, TF, SIM

Why it's a great deal

• 2025 New Gen. N150 Processer: The CWWK S3 Mini PC features the new model Twin Lake N150 CPU (upgrade of the Alder Lake N100), 4C/4T, up to 3.6GHz, 6MB cache. With an ultra-low TDP of just 6W, it’s perfect for energy-efficient systems. Supporting Auto Power-On, Scheduled Power-On, Wake-on-LAN, PXE Boot, Secure Boot, CPU Temperature Monitoring. UEFI only

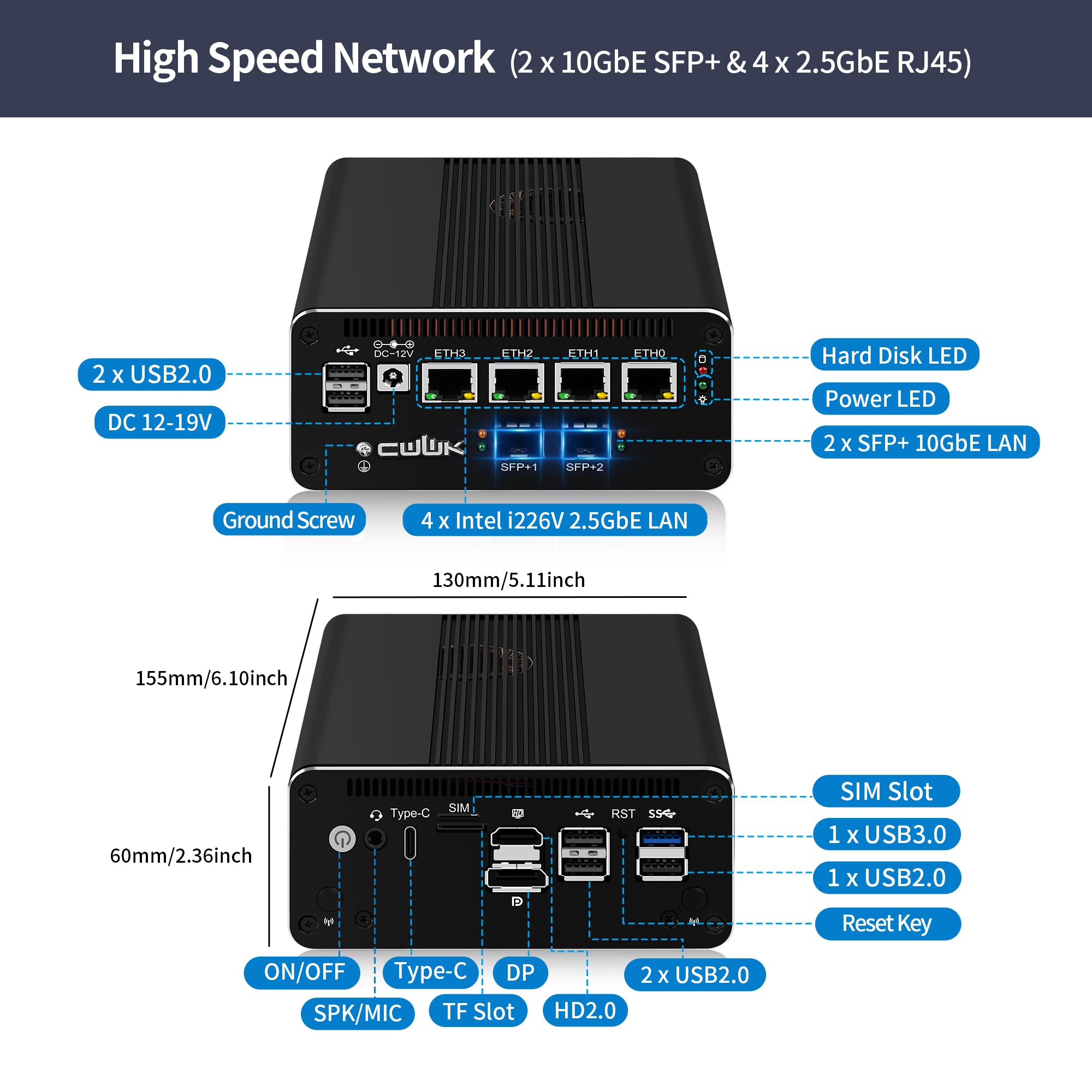

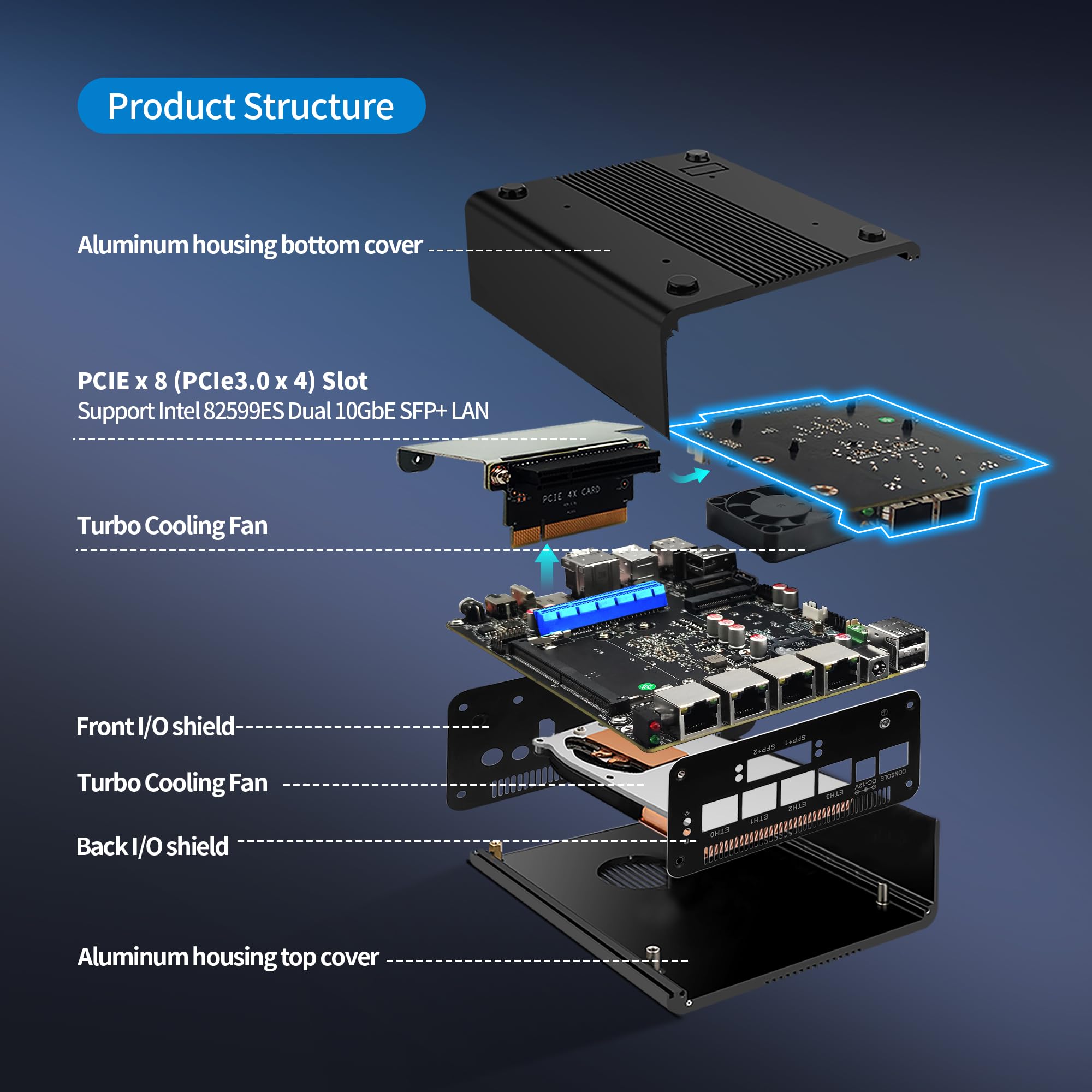

• Dual 10GbE + 4 x 2.5GbE RJ45: Equipped with 2 × 10Gbit SFP+ ports (82599ES controller, supporting FreeBSD-based systems, Linux, ESXi). The 10GbE ports are provided via a PCIe x8 slot using an adapter card, supporting PCIe passthrough, plus 4 x 2.5Gbit RJ45 ports (i226-V), delivering a total of 6 Ethernet ports for software routers, firewalls, data servers, or virtualization AIO

• Support DDR5 RAM + NVMe SSD: Features 1 x DDR5 SO-DIMM 4800MHz RAM slot, supporting up to 32GB RAM. With 1 x M.2 M-Key slot (PCIe3.0 x1) for 2280-sized NVMe SSDs, it also offers 1 x SATA3.0 ports for SATA SSD/HDD installation (Both share the same signal, supporting either NVMe or SATA 3.0, not both). 1 x Mini-PCIE for WiFi/BT or 4G modules (with SIM card slot)

• Various External I/O Port: The processor comes with integrated UHD Graphics, equipped with HD + DP + Type-C port, supports triple-screen output up to 4K@60Hz. 1 x USB3.2 5Gbps, 1 x USB Type-C and 5 x USB2.0 ports. 1 x MicroSD card slot, 1 x SIM card slot, and 1 x audio interface. 1 x BIOS reset button (anti-mistouch), long-press to fix BIOS or static power-on issues

• Metal Case + Smart Cooling: The metal casing provides better durability and effectively improves heat dissipation, ensuring stable operation under heavy load for extended periods. Supports CPU fan temperature management. 2 x antenna holes are reserved for connecting external antennas. Includes a power adapter and standard cables; only an electronic user manual is provided
