FNIRSI SG-002 4-20mA 0-10V Voltage Signal Generator 0-20mA Current Transmitter Professional Electronic Measuring Instruments

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p><img src="https://ae01.alicdn.com/kf/Sf7867154280745cd8df08d0e2a402b243.jpg?width=960&amp;height=80&amp;hash=1040" slate-data-type="image"/></p><p><kse:widget data-widget-type="customText" id="1005000000948107" type="relation"></kse:widget></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">This handheld small voltage and current signal generator can be used in scientific research, laboratories, company factories, electrical maintenance, etc.

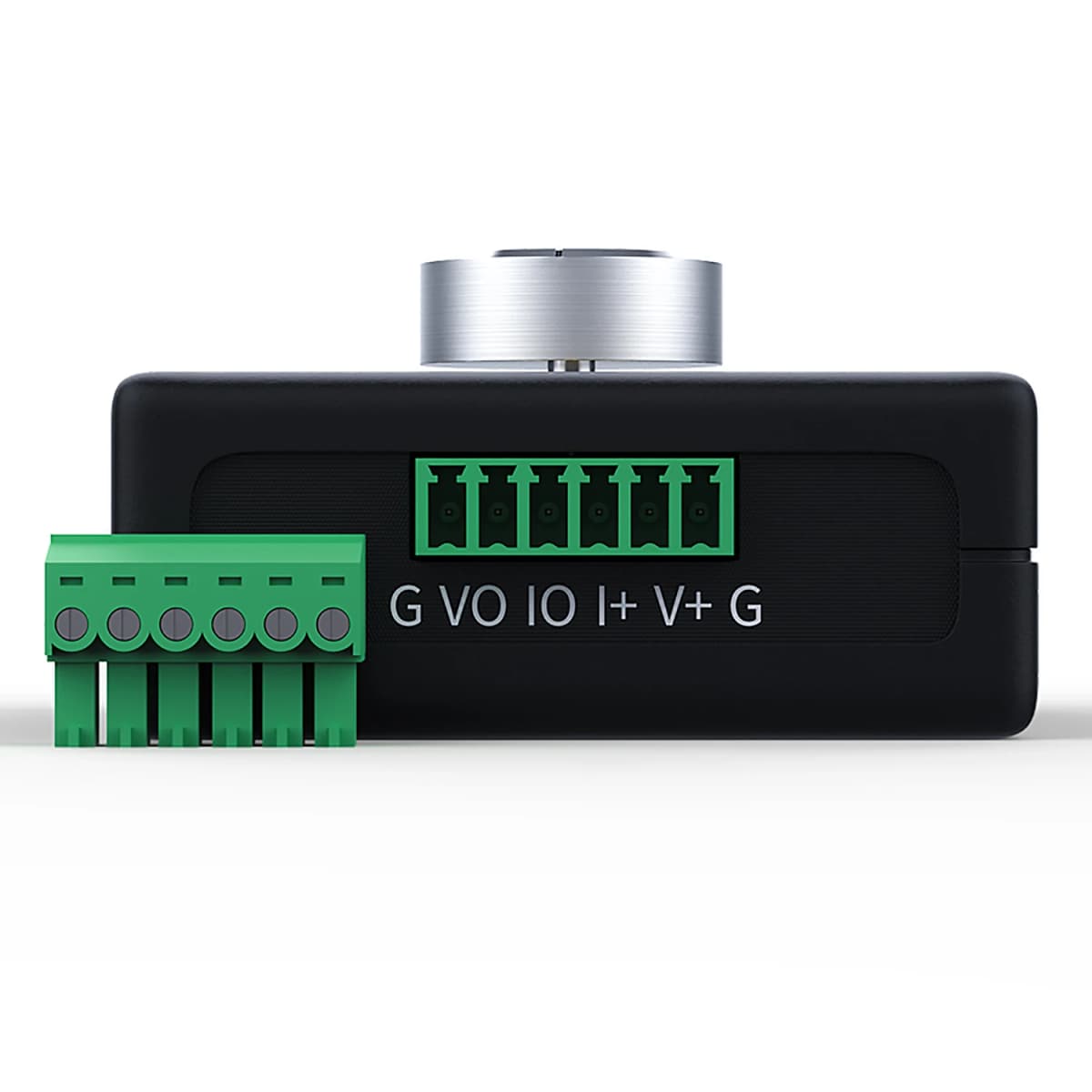

Come and try.</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif"><br/></span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif"><strong>Feature:</strong></span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">The voltage and current signal generator is the most commonly used electrical test instrument for electrical engineers and technicians during onsite installation, commissioning, overhaul and maintenance of electrical equipment.</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">Pluggable terminal blocks, safe and convenient wiring.</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">4-digit high-definition digital tube, the display brightness is evenly adjustable (1-8 brightness).</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">Aluminum knob cap, electroplating button, high-quality film, charging indicator, battery switch.</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">Three power supply methods: external power supply, DC5V micro USB, built-in lithium battery (only when type 1 is selected, the built-in lithium battery charging mode can be used).

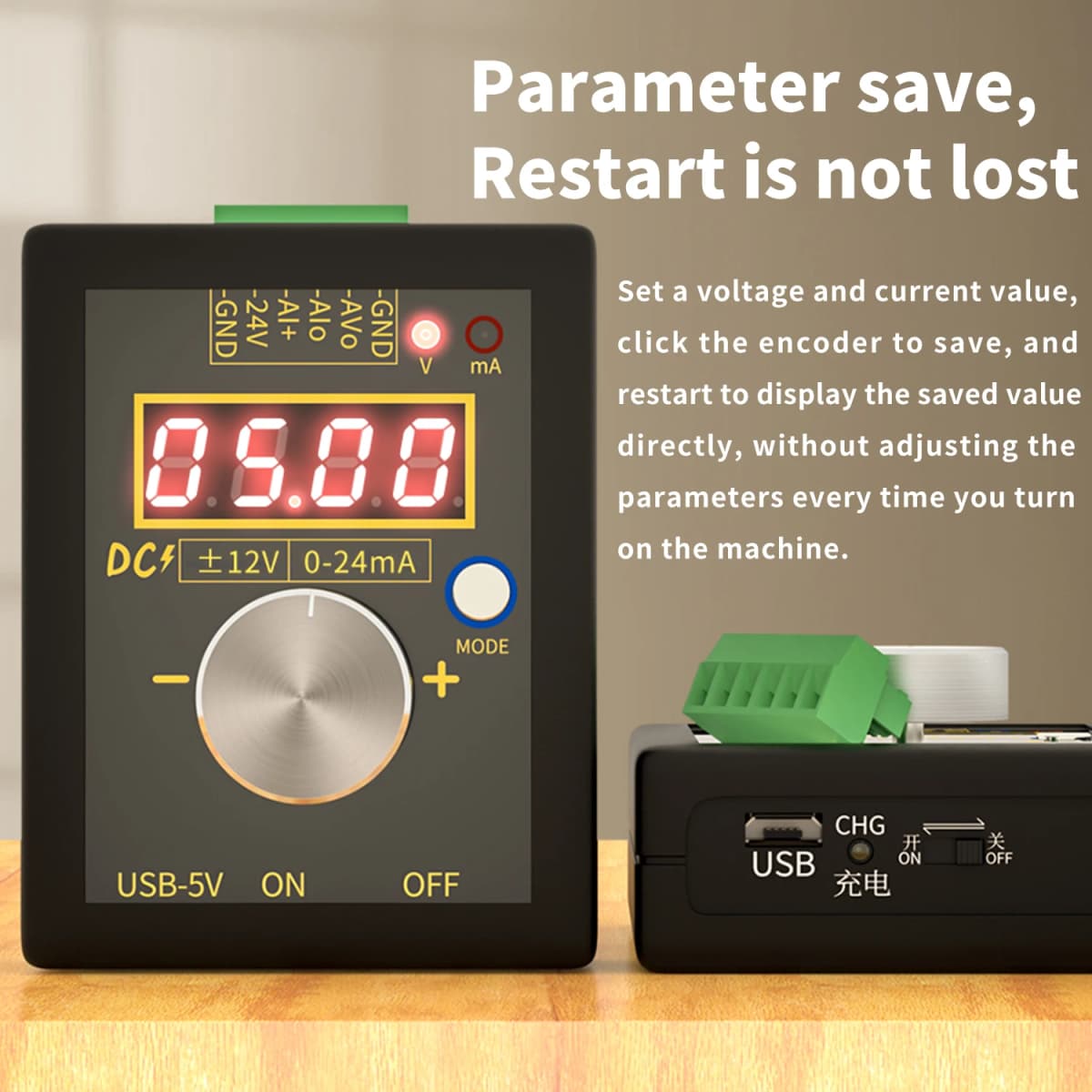

As long as you work all the way, you can also connect at the same time.</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">DC 15-30V external power supply, which can share the 24V power supply of PLC and other equipment.</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">MicroUSB universal interface, can be connected to mobile power, charger, computer USB port, etc.</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">On the normal operation screen, save a voltage and current value, click the encoder to save, and after releasing the &quot;OK&quot; button, the screen displays &quot;...&quot;, indicating that the save is successful.

After restarting, the saved value will be displayed directly, and there is no need to adjust the parameters every time when starting up, which is very practical.</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">Easy to carry and small in size, it is the best choice for on-site debugging.</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif"><br/></span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif"><strong>Specification:</strong></span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">Material: ABS</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">Colour: black</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">Voltage output: 0-12V</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">Current output: 0-24mA</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">Type: 1-2 (optional)</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">Charging method: built-in lithium battery (only type 1), external power supply, DC5V micro USB</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">Battery: 1*Lithium battery, 3.7V, 1100mAh (only type 1 included)</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">Size: about 89*69*28mm/3.5*2.7*1.1in</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">Packing size: about 90*70*38mm/3.5*2.8*1.5in</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">Weight:</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif"><br/></span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">Type 1: about 95g/3.4oz</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">Type 2: about 115g/4.1oz</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">Packing List: (optional)</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">Type 1:</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">1 * Voltage and Current Generator (not including battery)</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">Either</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">Type 2:</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">1 * Voltage and Current Generator (including battery</span></p><div><img src="https://ae01.alicdn.com/kf/S27bce91d1c14446b884f1db0e5335d60x.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/Sf4c89a4cdd1446fc863289d8f8838097u.jpg" slate-data-type="image"/><img width="944" height="1418" src="https://ae01.alicdn.com/kf/Sbe112a8e986443e88301dc5b9e6e8385E.jpg" slate-data-type="image"/><img width="944" height="1996" src="https://ae01.alicdn.com/kf/S9d9b99bc6ce14daca772b5d9beda8c6eH.jpg" slate-data-type="image"/><img width="944" height="1679" src="https://ae01.alicdn.com/kf/Sb52fe370ceb945b9905d89343eb3977dP.jpg" slate-data-type="image"/><img width="944" height="1970" src="https://ae01.alicdn.com/kf/Sde665240c2fa4439ac946571fce43c13n.jpg" slate-data-type="image"/><img width="944" height="1128" src="https://ae01.alicdn.com/kf/S97a05c88e0f343be96e19bcb45dd5cf03.jpg" slate-data-type="image"/><img width="944" height="1283" src="https://ae01.alicdn.com/kf/S75c7c563e9434b0ea6cf93a4cff779eeI.jpg" slate-data-type="image"/><img width="944" height="1896" src="https://ae01.alicdn.com/kf/S3a2748fa8be5454194975c1e258e0e30f.jpg" slate-data-type="image"/><img width="944" height="839" src="https://ae01.alicdn.com/kf/S8debb1cdd35d4d1fb83fcc0d544a6baeo.jpg" slate-data-type="image"/><img width="944" height="776" src="https://ae01.alicdn.com/kf/Sc537ebf5b5ca48758c74abf12a646884n.jpg" slate-data-type="image"/><img width="944" height="1109" src="https://ae01.alicdn.com/kf/S66a89af57c364639bb3c27dac29b9b2ec.jpg" slate-data-type="image"/><img width="944" height="1409" src="https://ae01.alicdn.com/kf/Scae0b1eb498f4e77820b9a2428dc969aJ.jpg" slate-data-type="image"/><img width="944" height="1326" src="https://ae01.alicdn.com/kf/Sd1bc24160037422fbcec17bb14d1e145Y.jpg" slate-data-type="image"/><img width="944" height="2263" src="https://ae01.alicdn.com/kf/S8d16d7efec5c46cf870a8df6f1a67820h.jpg" slate-data-type="image"/><img width="944" height="1453" src="https://ae01.alicdn.com/kf/S623a358abf3241d683e873f02ea62ec4A.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/S8c71f1a8392a4a74a0e54157817ade377.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/Sae422d2f59ed47b882d36a1489cbb2a4e.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/S9982861dfad6429d907b9644af73666ep.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/Sbd9a430a6958477ab298a5b79e9b6b91O.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/Sa6b7d1e4ad324452a23cb754ed3828a4f.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/S1106cd06a2c3473da990369266af1dea9.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/Sc6f7f83579d247fea68b014c318493d1D.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/S96b77e0e97ba45329c8ad52d27614e05S.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/Sf7d0708be82a4f098ba65c78ff06f34ac.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/Sd5a708ac68764118b75d37a88613d62ek.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/Sef7f56ff5f93418fa47dc5002cb9253f9.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/S694b69e23aea4582880a3dfeb3d836c1y.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/Sce939f64c12b4c2c9b4fc5d05dac21d2X.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/Sddac22dd0e564e6793ae3ad7bed59509L.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/Sdc830e278a1b466f9e3e654a2e13c2f1c.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/S3ddf9acd6bc947348189f3ec6146afb3e.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/S0e81f9fa7ccc4c929e29703cfadeecb3l.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/S2c81d0f06fdc419f9cd623e2a824374e9.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/S8a56790e198c421fbe3bd1a02e31db43f.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/S3aecb56c8f5f4d59b4a53fc636ab1529S.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/S590c7c06bf5a46c9b47fc82fc73f68fbi.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/Saae45e624e8f4668a92ac6f766ae2c13I.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/Sa450223798784652aac3218b686cf5bdF.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/Sae3b041e96ea4f11a357f8c21389deaeY.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/Se21d8b8b8ac34761a2a5997952ad1601N.jpg" slate-data-type="image"/><img src="https://ae01.alicdn.com/kf/S05258f7600014f68a4a94802016241400.jpg" slate-data-type="image"/><img width="944" height="401" src="https://ae01.alicdn.com/kf/S969772d6efd144b0a8ac9fd426910bc9p.jpg" slate-data-type="image"/></div><p><br/></p></div></div><p><br/></p>
